How to Create Extended Data Types (EDTs) in Finance and Operations of Dynamics 365 -- F&O Customization Part 2

For Creating Extended Data Types (EDTs) in Finance and Operations of Dynamics 365 follow the following steps:

Step # 1:

       Right-click on the project to Add -> New Items as shown in the figure;


    When you click the New Item, the new window is open as shown in the figure;


    Select the Data Types from the Side Bar and click on the Add button as shown in the figure;

Step # 2:

    Now right click on the EDT and select the Properties as shown in the figure;


    When you click the Properties button, the left panel is open, you can set the properties of EDT here,         mostly used properties are Label and Help Test.

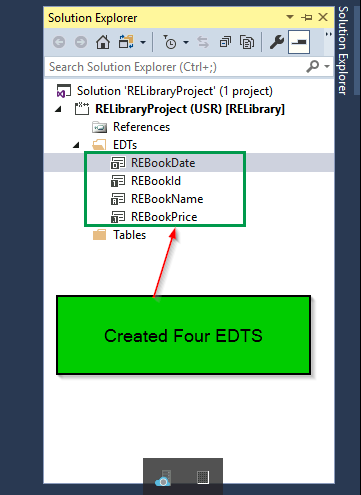

I have created four EDTs as shown in the figure;



You can check the EDTs in the Application Object Tree (AOT) as shown in the figure;


    If you did not find the EDTs in the AOT then right-click on the project and go to Properties and set the Synchronize Database on Build  to True as shown in the figure;



    After this, right-click on the project and rebuild the project. The EDTs are shown in the AOT.

    Thanks............
